BTLA

Purified Mouse Monoclonal Antibody

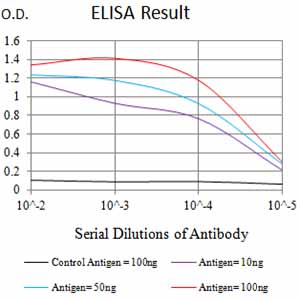

Figure 1:Black line: Control Antigen (100 ng);Purple line: Antigen (10ng); Blue line: Antigen (50 ng); Red line:Antigen (100 ng)
Figure 2:Western blot analysis using BTLA mAb against human BTLA (AA: extra 31-157) recombinant protein. (Expected MW is 41 kDa)
Figure 3:Western blot analysis using BTLA mAb against HEK293 (1) and BTLA (AA: extra 31-157)-hIgGFc transfected HEK293 (2) cell lysate.
Figure 4:Flow cytometric analysis of Hela cells using BTLA mouse mAb (green) and negative control (red).

Product Information
Application Applications Legend: E=ELISA WB=Western Blotting IHC=Immunohistochemistry IHC-P=Immunohistochemistry (Paraffin) IP=Immunoprecipitation IF=Immunofluorescence IC=Immunochemistry ICC=Immunocytochemistry FC=Flow Cytometry DB=Dot Blot	WB, IHC, ICC, E
Primary Accession	Q7Z6A9
Reactivity	Human
Host	Mouse
Clonality	Monoclonal
Clone Names	5G1G10
Isotype	Mouse IgG1
Calculated MW	32834 Da
Immunogen	Purified recombinant fragment of human BTLA (AA: extra 31-157) expressed in HEK293 cells.
Formulation	Purified antibody in PBS with 0.05% sodium azide

Additional Information
Gene ID	151888
Other Names	BTLA1; CD272
Dilution	WB~~ 1/500 - 1/2000 IHC~~1:100~500 ICC~~N/A E~~ 1/10000
Storage	Maintain refrigerated at 2-8°C for up to 6 months. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
Precautions	BTLA is for research use only and not for use in diagnostic or therapeutic procedures.

Protein Information
Name	BTLA {ECO:0000303\|PubMed:12796776, ECO:0000312\|HGNC:HGNC:21087}
Function	Inhibitory receptor on lymphocytes that negatively regulates antigen receptor signaling via PTPN6/SHP-1 and PTPN11/SHP-2 (PubMed:12796776, PubMed:14652006, PubMed:15568026, PubMed:18193050). May interact in cis (on the same cell) or in trans (on other cells) with TNFRSF14 (PubMed:19915044). In cis interactions, appears to play an immune regulatory role inhibiting in trans interactions in naive T cells to maintain a resting state. In trans interactions, can predominate during adaptive immune response to provide survival signals to effector T cells (PubMed:19915044).
Cellular Location	Cell membrane; Single-pass type I membrane protein
