PD1

Purified Mouse Monoclonal Antibody

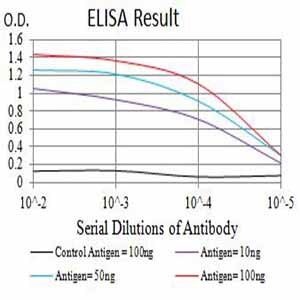

Figure 1:Black line: Control Antigen (100 ng);Purple line: Antigen (10ng); Blue line: Antigen (50 ng); Red line:Antigen (100 ng)
Figure 2:Western blot analysis using PD1 mAb against human PD1 (AA: extra 21-170) recombinant protein. (Expected MW is 46.6 kDa)
Figure 3:Western blot analysis using PD1 mouse mAb against MOLT4 (1), K562 (2), Ramos (3), HL-60 (4), THP-1 (5), and U937 (6) cell lysate.
Figure 4:Flow cytometric analysis of Hela cells using PD1 mouse mAb (green) and negative control (red).

Product Information
Application Applications Legend: E=ELISA WB=Western Blotting IHC=Immunohistochemistry IHC-P=Immunohistochemistry (Paraffin) IP=Immunoprecipitation IF=Immunofluorescence IC=Immunochemistry ICC=Immunocytochemistry FC=Flow Cytometry DB=Dot Blot	WB, IHC, ICC, E
Primary Accession	Q15116
Reactivity	Human
Host	Mouse
Clonality	Monoclonal
Clone Names	1D6F6
Isotype	Mouse IgG1
Calculated MW	31647 Da
Immunogen	Purified recombinant fragment of human PD1 (AA: extra 21-170) expressed in HEK293 cells.
Formulation	Purified antibody in PBS with 0.05% sodium azide

Additional Information
Gene ID	5133
Other Names	PDCD1; PD-1; CD279; SLEB2; hPD-1; hPD-l; hSLE1
Dilution	WB~~ 1/500 - 1/2000 IHC~~1:100~500 ICC~~N/A E~~ 1/10000
Storage	Maintain refrigerated at 2-8°C for up to 6 months. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
Precautions	PD1 is for research use only and not for use in diagnostic or therapeutic procedures.

Protein Information
Name	PDCD1 {ECO:0000303\|PubMed:7851902, ECO:0000312\|HGNC:HGNC:8760}
Function	Inhibitory receptor on antigen activated T-cells that plays a critical role in induction and maintenance of immune tolerance to self (PubMed:21276005, PubMed:37208329). Delivers inhibitory signals upon binding to ligands CD274/PDCD1L1 and CD273/PDCD1LG2 (PubMed:21276005). Following T-cell receptor (TCR) engagement, PDCD1 associates with CD3- TCR in the immunological synapse and directly inhibits T-cell activation (By similarity). Suppresses T-cell activation through the recruitment of PTPN11/SHP-2: following ligand-binding, PDCD1 is phosphorylated within the ITSM motif, leading to the recruitment of the protein tyrosine phosphatase PTPN11/SHP-2 that mediates dephosphorylation of key TCR proximal signaling molecules, such as ZAP70, PRKCQ/PKCtheta and CD247/CD3zeta (By similarity).
Cellular Location	Cell membrane; Single-pass type I membrane protein

Research Areas

For Research Use Only. Not For Use In Diagnostic Procedures.

Application Protocols

Provided below are standard protocols that you may find useful for product applications.
