IL1RAPL1 Antibody

Purified Mouse Monoclonal Antibody

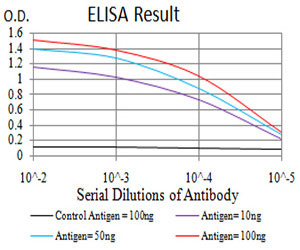

Figure 1:Black line: Control Antigen (100 ng);Purple line: Antigen (10ng); Blue line: Antigen (50 ng); Red line:Antigen (100 ng)
Figure 2:Western blot analysis using IL1RAPL1 mAb against human IL1RAPL1 (AA: 541-694) recombinant protein. (Expected MW is 43.3 kDa)
Figure 3:Western blot analysis using IL1RAPL1 mAb against HEK293 (1) and IL1RAPL1 (AA: 541-694)-hIgGFc transfected HEK293 (2) cell lysate.
Figure 4:Western blot analysis using IL1RAPL1 mouse mAb against A431 (1), SK-Hep-1 (2), and HL-7702 (3) cell lysate.
Figure 5:Immunofluorescence analysis of Hela cells using IL1RAPL1 mouse mAb (green). Blue: DRAQ5 fluorescent DNA dye. Red: Actin filaments have been labeled with Alexa Fluor- 555 phalloidin. Secondary antibody from Fisher (Cat#: 35503)
Figure 6:Flow cytometric analysis of Hela cells using IL1RAPL1 mouse mAb (green) and negative control (red).

Product Information
Application Applications Legend: E=ELISA WB=Western Blotting IHC=Immunohistochemistry IHC-P=Immunohistochemistry (Paraffin) IP=Immunoprecipitation IF=Immunofluorescence IC=Immunochemistry ICC=Immunocytochemistry FC=Flow Cytometry DB=Dot Blot	WB, FC, ICC, E
Primary Accession	Q9NZN1
Reactivity	Human
Host	Mouse
Clonality	Monoclonal
Clone Names	3E3D12
Isotype	IgG1
Calculated MW	79969 Da
Description	The protein encoded by this gene is a member of the interleukin 1 receptor family and is similar to the interleukin 1 accessory proteins. It is most closely related to interleukin 1 receptor accessory protein-like 2 (IL1RAPL2). This gene and IL1RAPL2 are located at a region on chromosome X that is associated with X-linked non-syndromic mental retardation. Deletions and mutations in this gene were found in patients with mental retardation. This gene is expressed at a high level in post-natal brain structures involved in the hippocampal memory system, which suggests a specialized role in the physiological processes underlying memory and learning abilities.
Immunogen	Purified recombinant fragment of human IL1RAPL1 (AA: 541-694) expressed in E. Coli.
Formulation	Purified antibody in PBS with 0.05% sodium azide

Additional Information
Gene ID	11141
Other Names	Interleukin-1 receptor accessory protein-like 1, IL-1-RAPL-1, IL-1RAPL-1, IL1RAPL-1, Oligophrenin-4, Three immunoglobulin domain-containing IL-1 receptor-related 2, TIGIRR-2, X-linked interleukin-1 receptor accessory protein-like 1, IL1RAPL1, OPHN4
Dilution	WB~~1/500 - 1/2000 FC~~1/200 - 1/400 ICC~~N/A E~~1/10000
Storage	Maintain refrigerated at 2-8°C for up to 6 months. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
Precautions	IL1RAPL1 Antibody is for research use only and not for use in diagnostic or therapeutic procedures.

Protein Information
Name	IL1RAPL1
Synonyms	OPHN4
Function	May regulate secretion and presynaptic differentiation through inhibition of the activity of N-type voltage-gated calcium channel (PubMed:12783849). May activate the MAP kinase JNK (PubMed:15123616). Plays a role in neurite outgrowth (By similarity). During dendritic spine formation can bidirectionally induce pre- and post-synaptic differentiation of neurons by trans-synaptically binding to PTPRD (By similarity).
Cellular Location	Cell membrane; Single-pass type I membrane protein Cytoplasm. Cell projection, axon. Cell projection, dendrite. Note=May localize to the cell body and growth cones of dendrite-like processes
Tissue Location	Detected at low levels in heart, skeletal muscle, ovary, skin, amygdala, caudate nucleus, corpus callosum, hippocampus, substantia nigra and thalamus. Detected at very low levels in tonsil, prostate, testis, small intestine, placenta, colon and fetal liver
